ZTM Series LED High-Bay Lighting

ZTM-50 LED高天井照明 ZTMシリーズ

LED High Ceiling Lights ZTM Series

Model No. ZTM-50 ・ZTM-80 ・ZTM-120
Features Low noise and excellent noise immunity (EMI/EMS)
Installation location Anechoic chambers, hospitals, anechoic rooms, etc.
Luminous flux 52W
Power consumption 9250lm
Dimensions Φ250mm×H261mm

Data Download

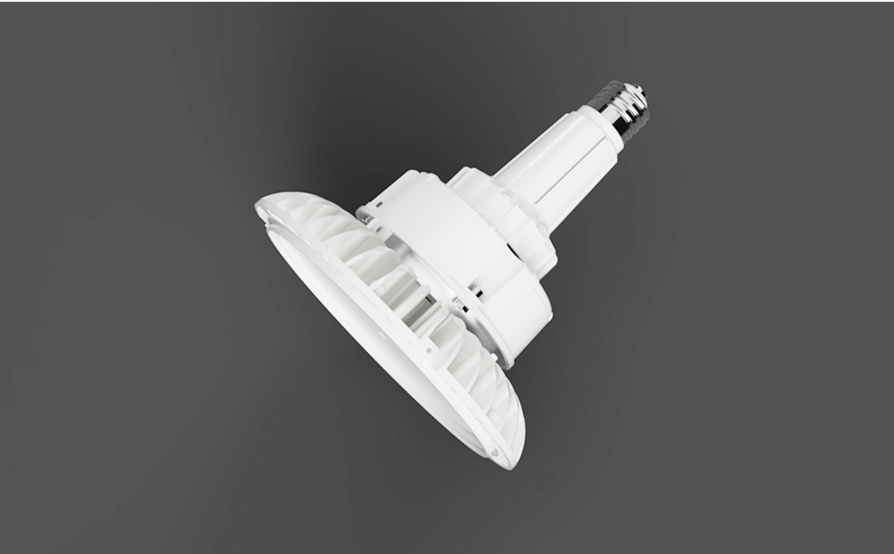

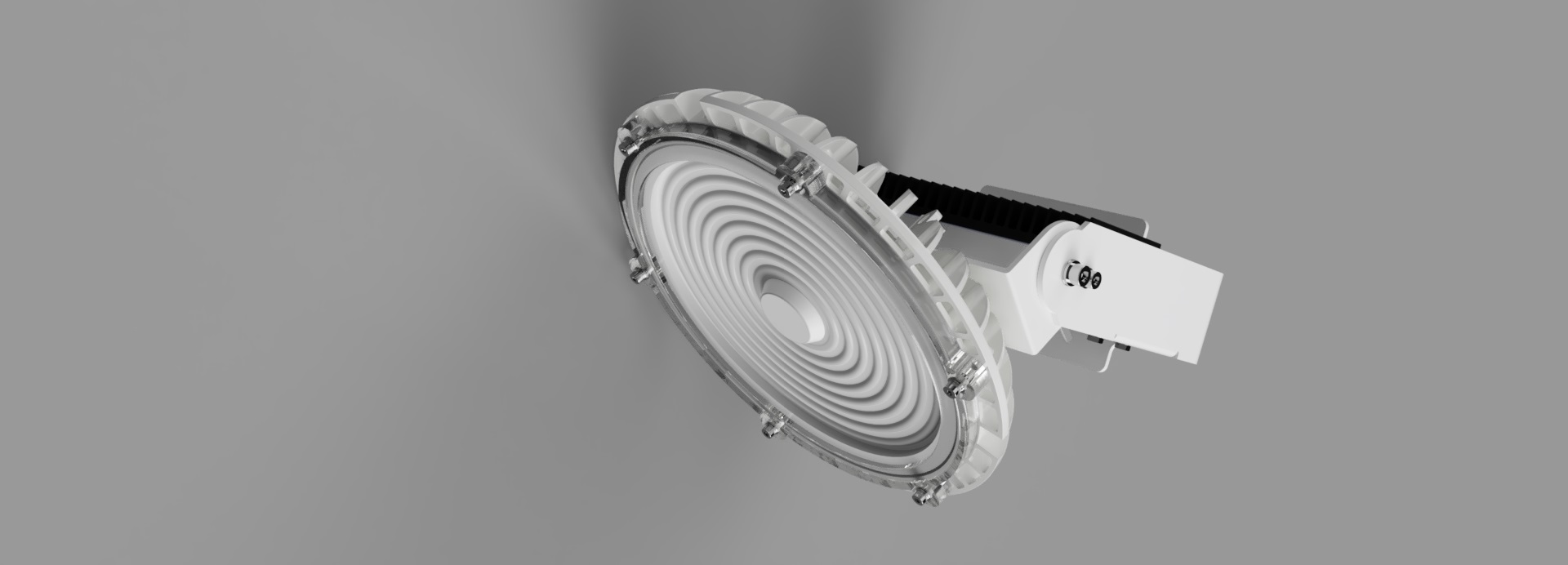

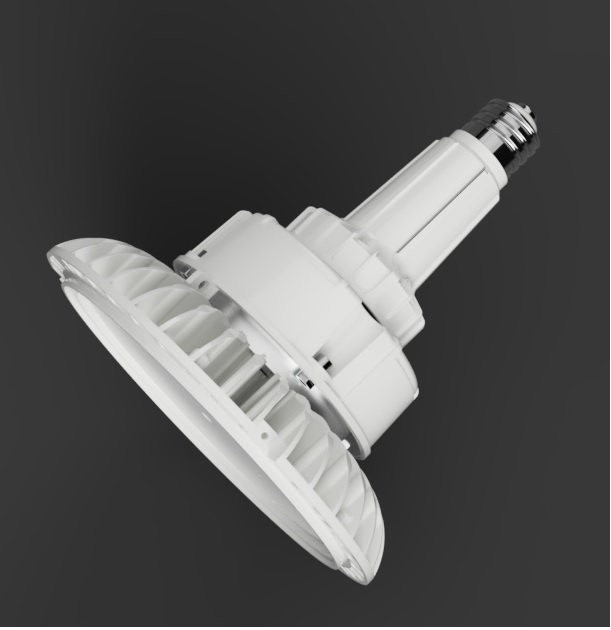

Image (jpg) ZTM_Normal ZTM_Arm
Outline Drawing (PDF)
Outline Drawing (DXF) ZTM_NORMAL.DXF ZTM_Arm.DXF
Specification Sheet (PDF) お問い合わせください
Instruction Manual (PDF)

Product Specifications

Model No. ZTM-50 ZTM-80 ZTM-120
Input voltage DC-48V
Power consumption 52W 83W 124W
Luminous Flux 9250lm15000lm22000lm
Color temperature 昼白色(5,000K)
Color Rendering Index Ra>70
Dimming function None
Beam Angle 90° 120°
Dimensions φ250㎜×h261㎜
Weight 3.0㎏
Operating Temperature Range -20℃~60℃ *Under the condition that heat radiation is not disturbed
Storage temperature -30℃~70℃
Certifications RoHS (Restriction of Hazardous Substances)
Cooling Method Passive cooling with integrated heatsink (magnesium alloy)
Design life 50,000 hours
LED chip OSRAM
Luminous Efficacy 150lm/W
Waterproof Rating IP 67
