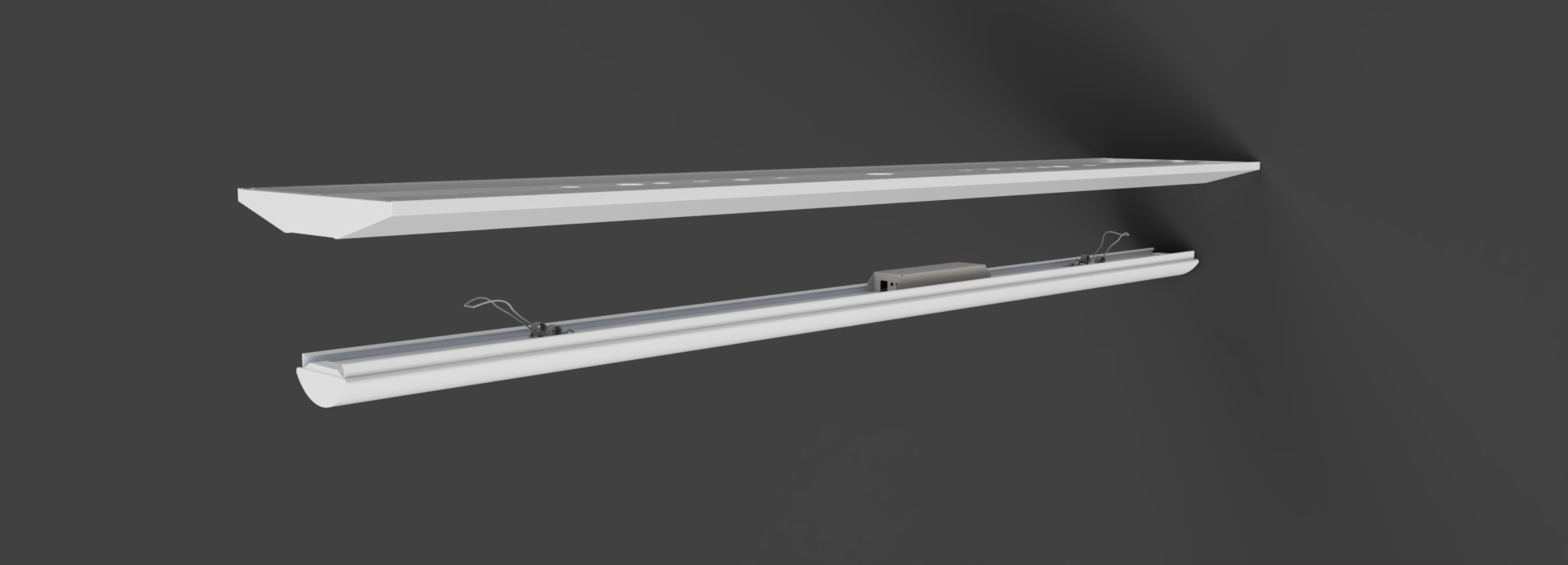

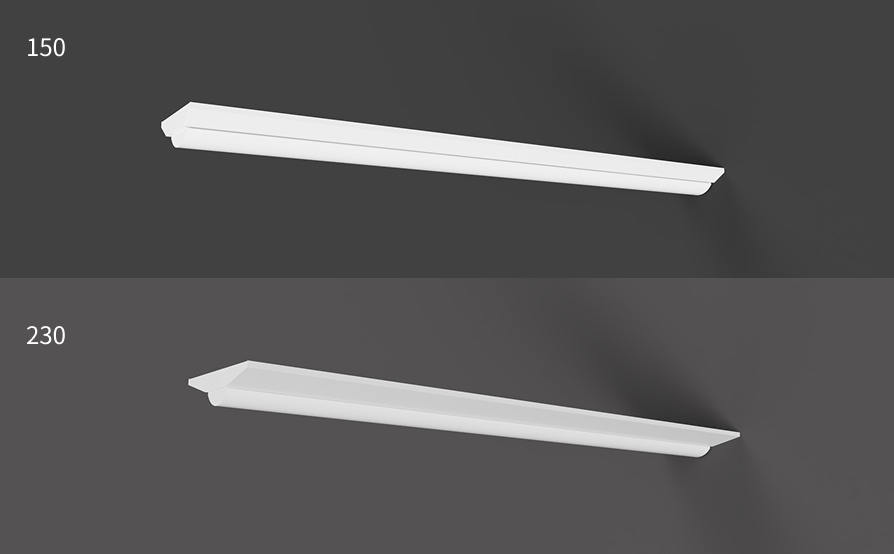

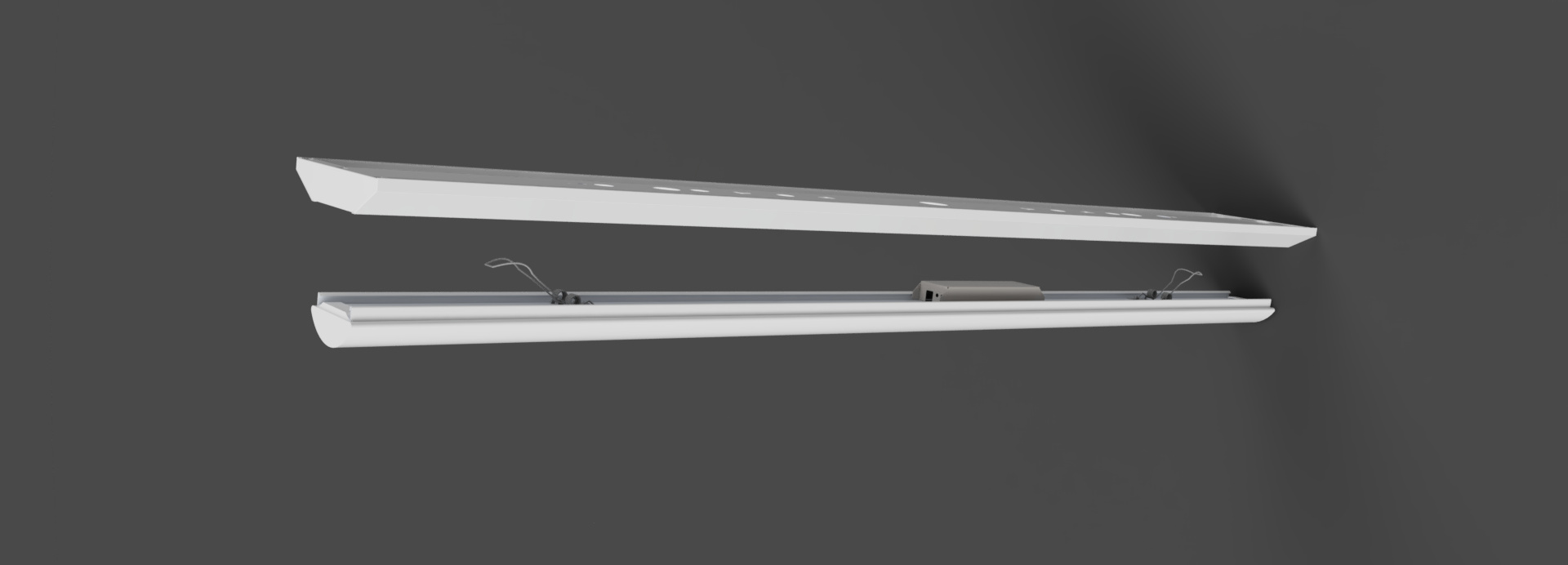

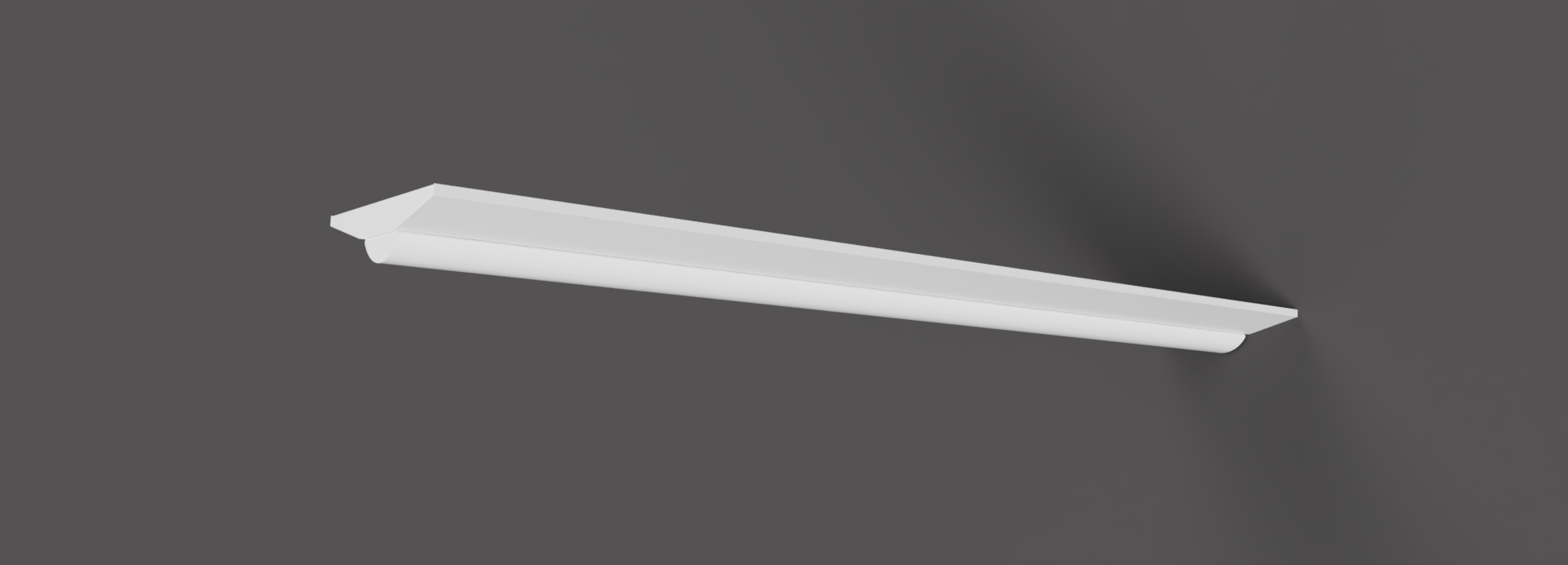

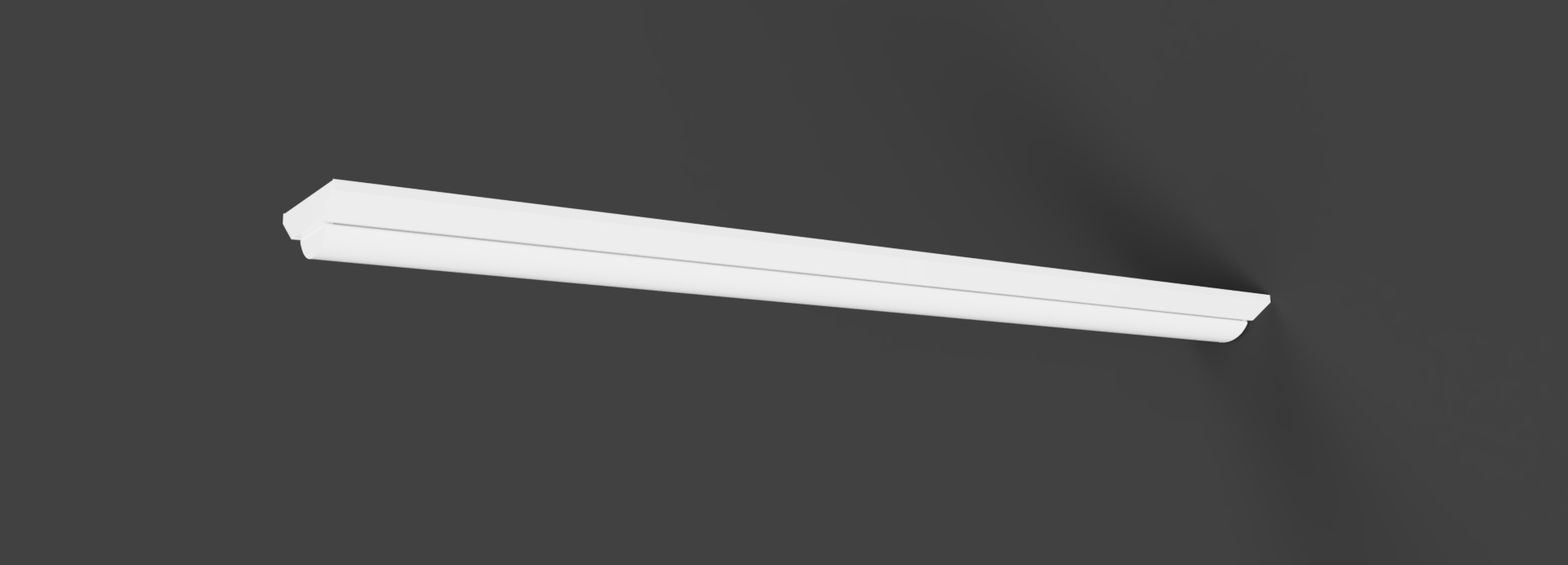

ZBK Series Integrated LED Base Light
Integrated LED Base Light – ZBK Series
| Model No. | ZBK-230・ZBK-150 |
|---|---|
| Luminous Flux | 5,000㏐ |
| Power Consumption | 32Ｗ |
| Dimensions | 1,250㎜×30㎜×230㎜・1,250㎜×30㎜×150㎜ |
Data Download
| Image (jpg) |
|
|---|---|
| Outline Drawing (PDF) |
|
| Outline Drawing (DXF) |
|
| 3D CAD Data (STEP) |
|
| Specification Sheet (PDF) |
|
| Instruction Manual (PDF) |
|
Product Specifications
| Model No. | ZBK-230 | ZBK-150 | |
|---|---|---|---|
| Input voltage | DC42V～48V | ||
| Power consumption | 32Ｗ | ||
| Luminous Flux | 5,000㏐ | ||
| Color temperature | Daylight White (5,000K) | ||
| Color Rendering Index | Ｒａ＞85 | ||
| Dimming function | None | ||
| Beam Angle | 120° | ||
| Dimensions | 1,250㎜×30㎜×230㎜ | 1,250㎜×30㎜×150㎜ | |
| Weight | 2.8㎏ | 2.2㎏ | |
| Operating Temperature Range | -25℃～45℃ *Under the condition that heat radiation is not disturbed | ||
| Storage temperature | -30℃～50℃ | ||
| Certifications | RoHS (Restriction of Hazardous Substances) | ||
| Cooling Method | Natural air cooling | ||
| Design life | 50,000 hours | ||
| LED chip | OSRAM | ||
