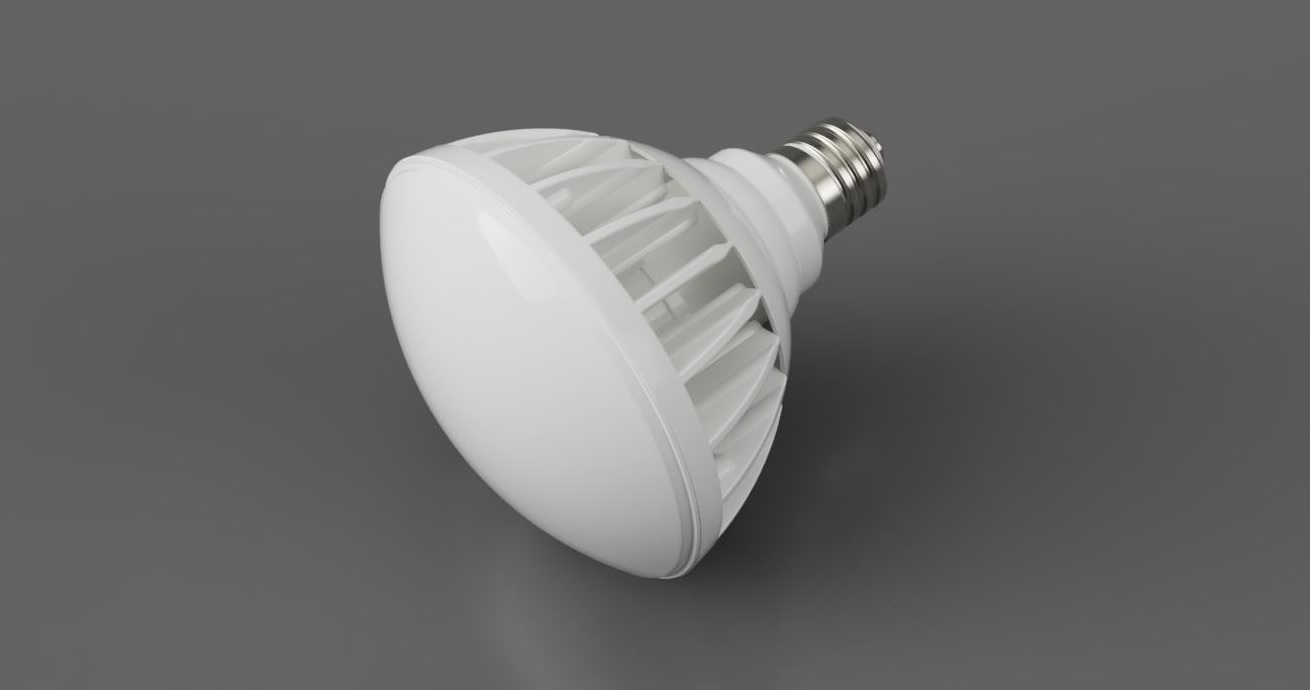

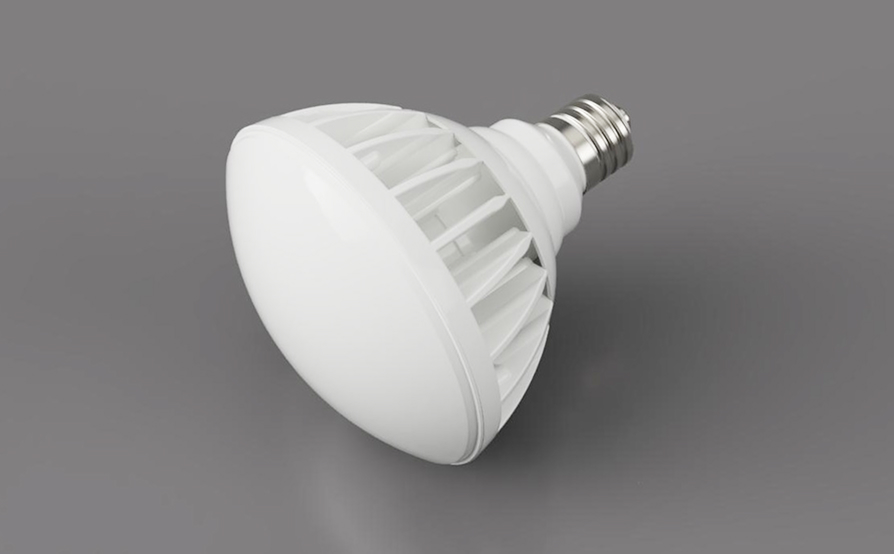

ZTP Series LED Mercury Lamp
LED Mercury Lamp – ZTP Series
| Model No. | ZTP-50 |
|---|---|
| Luminous Flux | 8,600 lｍ |
| Power Consumption | 50W |
| Dimensions | 195㎜×Φ170 ㎜ |
Data Download
| Image (jpg) |
|
|---|---|
| Outline Drawing (PDF) |
|
| Outline Drawing (DXF |
|
| Specification Sheet (PDF) |
|
| Instruction Manual (PDF) |
|
Product Specifications
| Model No. | ZTP-50 | ||
|---|---|---|---|
| Input voltage | DC46V～49V | ||
| Power consumption | 50Ｗ | ||
| Luminous Flux | 8,600lｍ | ||
| Color temperature | Daylight White (5,000K) | ||
| Color Rendering Index | Ｒａ＞85 | ||
| Dimming function | None | ||
| Beam Angle | 110° | ||
| Dimensions | 195㎜×Φ170 ㎜ | ||
| Weight | 約1.2㎏ | ||
| Operating Temperature Range | -20℃～60℃ *Under the condition that heat radiation is not disturbed | ||
| Base Type | E39 | ||
| Storage temperature | －30℃～70℃ | ||
| Protection Rating (Dust/Water) | IP65 | ||
| Certifications | RoHS (Restriction of Hazardous Substances) | ||
| Cooling Method | Natural air cooling via heatsink (aluminum) | ||
| Design life | 50,000 hours | ||
| LED chip | OSRAM | ||
