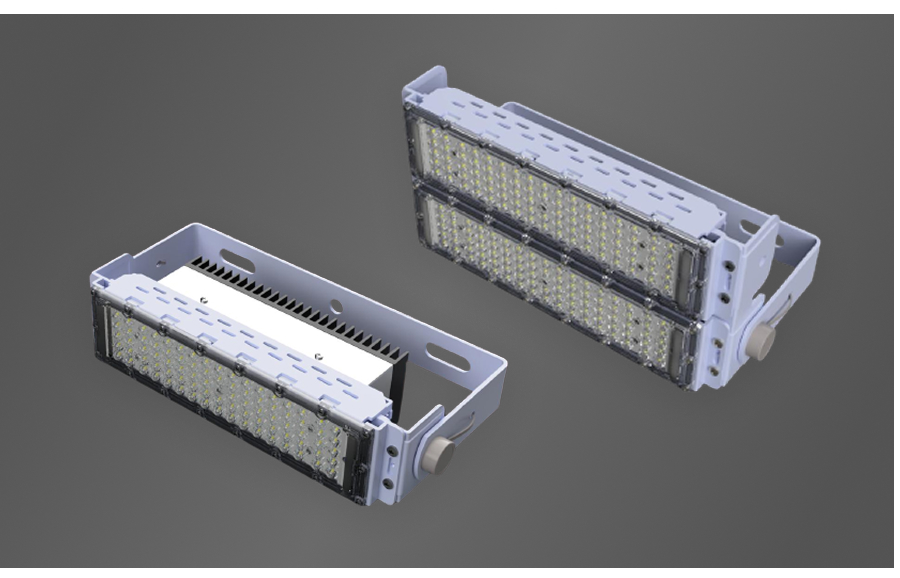

ZTS Series DC Type Mercury Lamp Replacement Lighting

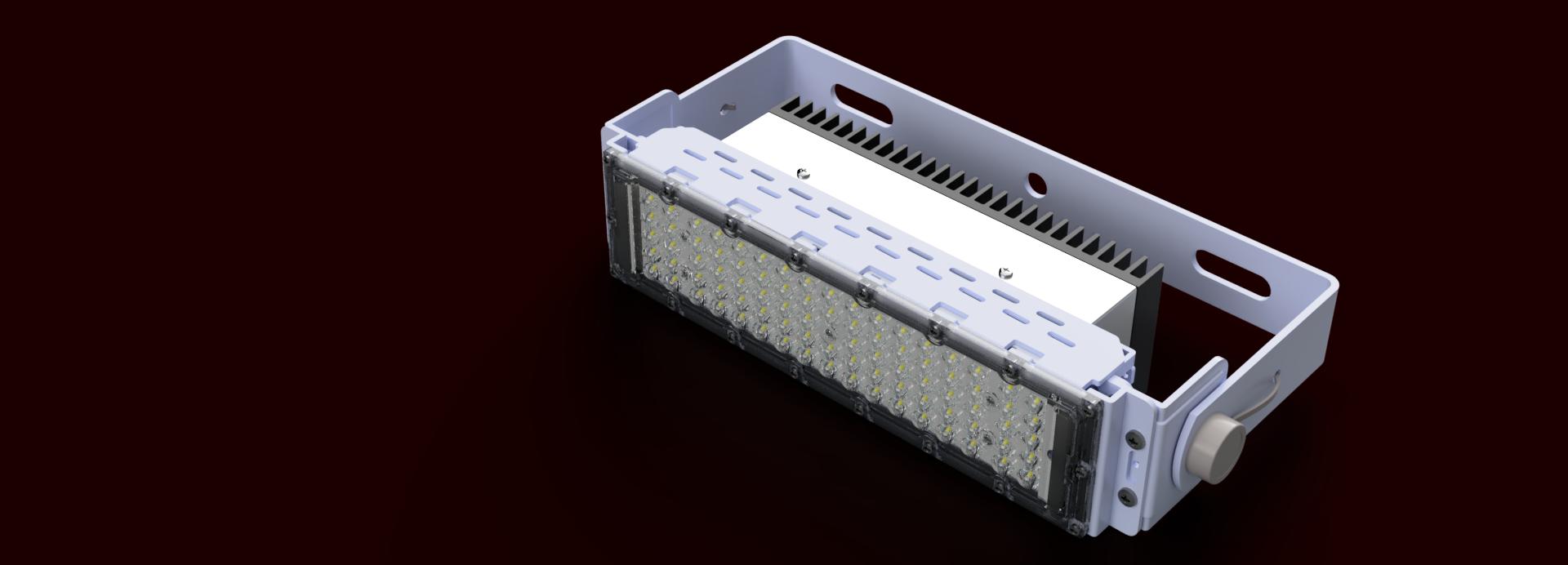

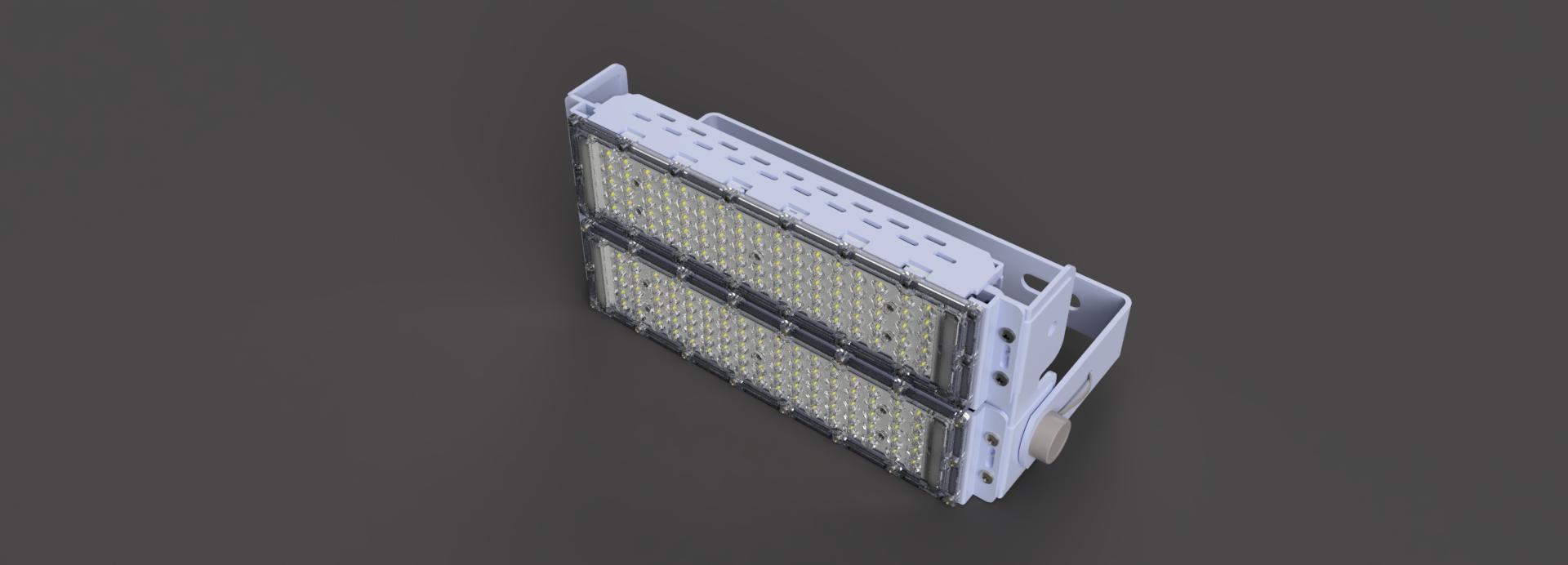

DC-Type Mercury Lamp Replacement Lighting – ZTS Series
| Model No. | ZTS-60・ZTS-100 |
|---|---|
| Luminous Flux | 8,400lm・10,400lm |
| Power Consumption | 60Ｗ・80W |
| Dimensions | 337 mm × 70 mm × 80.1 mm / 337 mm × 145 mm × 82.1 mm |
Data Download
| Image (jpg) |
|
|---|---|
| Outline Drawing (PDF) |
|
| Outline Drawing (DXF) |
|
| Specification Sheet (PDF) |
|
| Instruction Manual (PDF) |
|
Product Specifications
| Model No. | ZTS-60 | ZTS-100 | |
|---|---|---|---|
| Input voltage | DC42Ｖ～48Ｖ | ||
| Power consumption | 60W | 80W | |
| Luminous Flux | 8,400lｍ | 10,400lｍ | |
| Color temperature | Daylight White (5,000K) | ||
| Color Rendering Index | Ｒａ＞85 | ||
| Dimming function | None | ||
| Beam Angle | 90°× 100° | ||
| Dimensions | 337 ㎜×70 ㎜×80.1 ㎜ | 337 ㎜×145 ㎜×82.1 ㎜ | |
| Weight | Approx. 1.5 kg | Approx. 2.9 kg | |
| Operating Temperature Range | -20℃～60℃ *Under the condition that heat radiation is not disturbed | ||
| Storage temperature | -30℃～70℃ | ||
| Protection Rating | IP65 | ||
| Certifications | RoHS (Restriction of Hazardous Substances) | ||
| Cooling Method | Natural air cooling via heatsink (aluminum) | ||
| Design life | 50,000 hours | ||
| LED chip | OSRAM | ||
